Backcountry Guardian
About The Backcountry Guardian
The Backcountry Guardian is TNT Solutions’ flagship fire and rescue UTV, engineered to bring serious suppression and rescue capability into areas traditional apparatus can’t easily access. Built on the CFMOTO UFORCE U10 Pro platform, the Guardian combines a 100-gallon integrated water tank, versatile pumping capabilities, advanced emergency lighting and integrated rescue features in one compact off-road unit.
Designed for departments that need both fire suppression and rescue capability beyond the pavement, the Guardian delivers the familiar functionality of a fire apparatus in a highly maneuverable platform.
Platform & Core Specifications
Chassis Platform
Emergency Lighting System
Emergency Lighting System
The Backcountry Guardian is built on the CFMOTO UFORCE U10 Pro Highland XL, providing the power, comfort and electrical foundation required for emergency response applications. TNT Solutions builds on that platform with integrated firefighting, rescue, lighting and control systems to create a mission-ready emergency response vehicle.
Emergency Lighting System
Emergency Lighting System
Emergency Lighting System
The Guardian features Whelen T-Series emergency lighting, providing powerful warning visibility in a compact, low-profile design. Multiple lighting configurations and programmable flash patterns allow the system to be tailored to your department’s operational needs.
Water Capacity
Emergency Lighting System

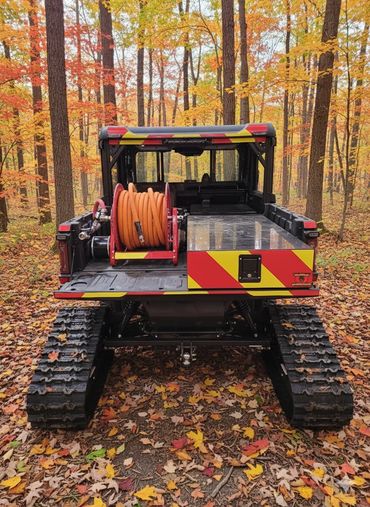

The Backcountry Guardian features a 100-gallon built-in water tank, providing substantial suppression capability without relying on a traditional skid-mounted system. The integrated design maximizes usable space while supporting extended suppression and pump-and-roll operations in difficult-to-access terrain.
Rescue Functions
Integrated Electronics

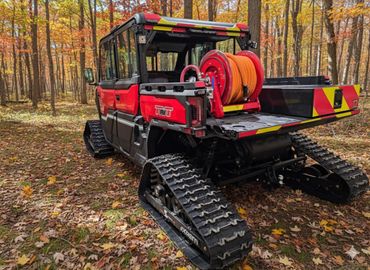

The Guardian combines fire suppression and rescue capability in one compact platform. Integrated rope and equipment storage, along with the ability to transport a full-length Stokes rescue basket without overhang, helps crews access and operate in areas traditional apparatus can’t easily reach.
Versatile Pumping
Integrated Electronics
Integrated Electronics
The Backcountry Guardian is engineered for versatile firefighting operations, with the ability to pump-and-roll, operate as a stationary pump or function as a relay pump for larger apparatus. Its integrated PTO pump and custom plumbing system maintain water flow while the vehicle is in motion, giving crews greater flexibility in a wide range of fireground conditions.
Integrated Electronics
Integrated Electronics
Integrated Electronics
TNT Solutions uses the Whelen Core® control system to manage the Guardian’s emergency lighting and auxiliary functions through a single programmable interface. The system provides centralized control, advanced diagnostics and customizable programming, bringing familiar fire apparatus functionality to a compact UTV platform.
Fire Truck Logic, Simplified for the Field
Fire Truck Logic, Simplified for the Field
Fire Truck Logic, Simplified for the Field
The Backcountry Guardian is designed with familiar fire apparatus logic, helping crews transition quickly from full-size apparatus to the UTV. Tank-to-pump and tank-fill controls, primer functions, pumping controls and clear system labeling are arranged with firefighter operation in mind. The result is an intuitive system that reduces the learning curve and allows crews to focus on the response when every second counts.
Comprehensive Warranty Coverage
Fire Truck Logic, Simplified for the Field
Fire Truck Logic, Simplified for the Field
Every Backcountry Guardian is backed by comprehensive warranty coverage, including:
60-Month CFMOTO Powertrain • 12-Month TNT Bumper-to-Bumper • 10-Year Whelen Lighting • 1-Year Pump • 2-Year Reelcraft Reel
Additional manufacturer-backed coverage may apply to other components and equipment.
Custom Built
Fire Truck Logic, Simplified for the Field
Custom Built
Every Backcountry Guardian can be configured around the specific needs of your department. From emergency lighting and communications to storage, graphics, rescue equipment and pump configurations, TNT Solutions works directly with your team to create a unit that fits your operational needs, response requirements and budget.
Why a Built in Water Tank?
The Guardian’s 100-gallon water tank is built directly into the vehicle rather than added as a traditional skid unit. This helps lower the centre of gravity, improve weight distribution and preserve valuable space for firefighting and rescue equipment, while maintaining the maneuverability needed for off-road response.
The Backcountry Guardian’s 100-gallon tank is custom-built from high-strength polyethylene for durability in demanding off-road environments. Its corrosion-resistant construction eliminates the need for welded seams, while the molded and CNC-cut design reduces weight and helps prevent leaks. Built to withstand vibration, rough terrain and extreme temperature changes, the tank provides a durable, low-maintenance water storage solution designed for long-term emergency service.
Every Backcountry Guardian water tank is integrated into the complete suppression system. Internal baffling helps control water movement on steep grades, while a low-draw pickup maintains consistent flow to the pump even when operating at challenging angles. Integrated fill and drain ports make refilling and maintenance straightforward, creating a balanced system designed for reliable operation in demanding terrain.
Optional Track System

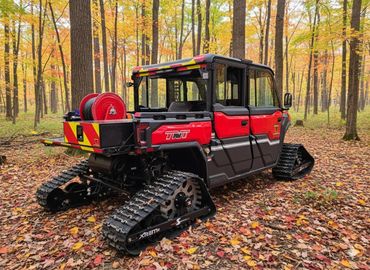

The Backcountry Guardian can be equipped with a Canadian-made track system designed for demanding terrain and winter conditions. The larger footprint improves flotation, traction and weight distribution across snow, mud and uneven ground, giving crews greater access to areas conventional emergency vehicles can’t easily reach. The system is engineered for durability, reliability and year-round emergency response.
Emergency Lighting Package & Control

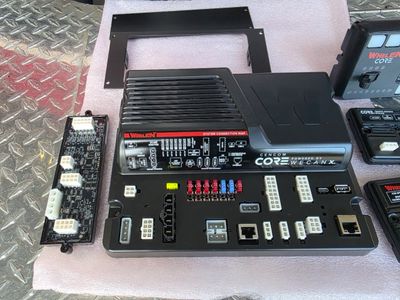

Whelen Core
The Backcountry Guardian uses the Whelen Core® control system to bring emergency lighting, scene lighting and other vehicle functions into one centralized interface. Fully programmable and configured in-house by TNT Solutions, Core allows each Guardian to be tailored to the department’s operational needs while providing advanced diagnostics and reliable, intuitive control.
Whelen T-ION Lights
The Guardian uses Whelen T-ION™ lights to provide powerful emergency warning in a compact, low-profile design. Multiple mounting and colour options allow the lighting package to be configured around each department’s needs, delivering strong visibility without adding unnecessary bulk to the vehicle.
Computer Programming & System Customization
Every Guardian lighting and control system is programmed in-house by TNT Solutions using Whelen Command™ software. Switch logic, scene lighting, safety functions and other controls are configured around the department’s operational needs, creating an intuitive system that operates more like a full-size fire apparatus.
Expandability & Advanced Features
Whelen Core® allows the Guardian’s control system to expand with additional features as needed. Available options include vehicle-to-vehicle synchronization, advanced diagnostics, safety flash modes and power monitoring, giving departments greater control and flexibility as their operational needs evolve.
Park, Cruise & Low Power Modes
Every Guardian can be programmed with automatic lighting modes based on vehicle status:
- Park Mode: Adjusts the warning pattern when the vehicle is stationary for effective scene visibility.
- Cruise Mode: Automatically changes the warning pattern while the vehicle is moving.
- Low Power / Night Mode: Reduces selected lighting intensity during nighttime operations to help preserve visibility around the scene.
These programmable modes allow the lighting system to adapt automatically between driving, stationary and nighttime operations.
Integrated Stokes Rescue Basket Location - NO OVERHANG
Complete Graphics Package
NFPA-Compliant Chevron Striping
NFPA-Compliant Chevron Striping
NFPA-Compliant Chevron Striping
Every Backcountry Guardian includes high-visibility rear chevron striping designed to improve visibility during roadside, low-light and off-road operations. Durable reflective materials help crews and equipment remain visible while giving the Guardian the professional appearance expected of an emergency response vehicle.
Custom Reflective Striping
NFPA-Compliant Chevron Striping
NFPA-Compliant Chevron Striping
Each Backcountry Guardian can be finished with custom reflective striping tailored to your department’s colours and branding. Using durable, high-quality reflective materials, TNT Solutions creates a professional finish that improves visibility while keeping your unit consistent with the rest of your fleet.
Custom Department Graphics
NFPA-Compliant Chevron Striping
Custom Department Graphics
Complete your Backcountry Guardian with custom department graphics, including logos, unit numbers, lettering and identification. TNT Solutions designs and installs each graphics package in-house, creating a finished unit that looks consistent with your department’s fleet and branding.
